ARCHLine.XP Reader

Free 2D/3D reader for plans

ARCHLine.XP Reader application is free to download and free to use. You can open the project from your architect or interior designer and you can view the 2D and 3D plans in it.

You are free to explore the 3D model or zoom to any specific area of the 2D plans. Use this application to experience the plans of your dream house or interior like never before. You can even print the drawings to make the really important decisions above the table together.

Are you ready? Let's go!



How to use the application?

Open project

Have you got the project file but you do not know what to do with it? No worries! Just follow these steps:

  • Start the ARCHLine Reader application by using the icon on the Desktop.

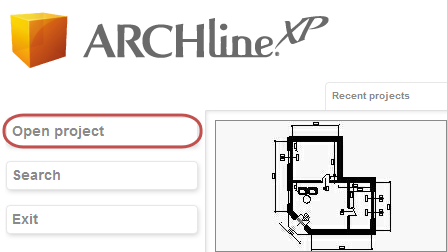

  • Soon the Welcome screen will appear. Click on the "Open project" button.
  • Find the file on your computer using the appearing dialog and click on the "Open" button.
    That's it!

Zoom in or out

It is very easy to zoom to a specific area of the drawing or to zoom out again. Please do the following.

  • Click on a drawing.

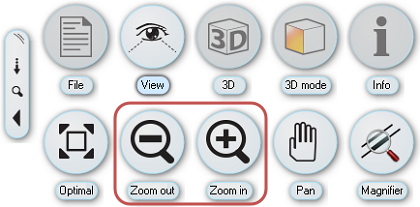

  • Select the View / Zoom out button to see the content from a distance.
  • Select the View / Zoom in button to enlarge the content.

Would you like to see the full drawing again?

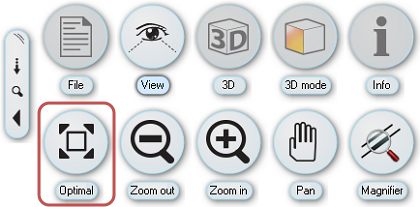

Use the "Optimal" command in the View submenu of the Touch screen menuboard.


Pan the view

The 2D drawings in the project can be panned (moved). Just follow these steps:

  • Click on a 2D drawing that you would like to pan.
  • Find the Navigation bar in the right bottom corner of the screen. Click and hold the left mouse button on the icon that represents a hand in the center while you move the mouse.
  • Just release the mouse button when you are done.
  • Please repeat the previous steps whenever you would like to pan the drawing again.

Cycle through the previously saved views

If there are views saved by the designer you can easily cycle through them.

  • Click on the 3D view.
  • Find and open the Info commands using the Touch menu screenboard.

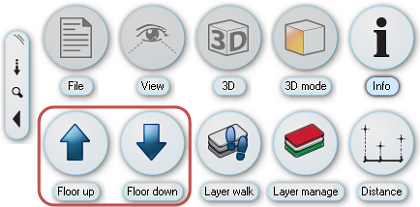

  • Use the 1st and 2nd icon to cycle through the previously saved views (one represents an arrow pointing up and the other represents an arrow pointing down).

Freely Orbit around the 3D model

To freely orbit around a 3D model just follow these steps.

  • Click on the 3D view.
  • Find the Navigation bar in the right bottom corner of the screen. Click and hold the left mouse button on the Orbit icon in the center while you move the mouse.
  • Just release the mouse button when you are done.
  • Please repeat the previous steps whenever you would like to orbit the 3D view again.

Print

You can easily print the active drawing of the project (the drawing which you clicked on the last time) by simply using the File / Print command of the Touch menu board.

If you wish to print the drawing to fit on an A4 size paper, please follow these steps:

  • Click on the File / Print command in the Touch menu board.
  • Select a printer in the appearing dialog window.
  • Set the paper size.
  • Choose the Scale to fit option in the Scale factor settings area.
  • Enable the Center the plot option.

Please note that if you would like to print the drawing in an easy to measure scaling (such as 1:100), then you should choose the proper scaling in the Scale factor settings area. Printing in a scaling different than the "Scale to fit" option can also result in a drawing that is larger than the available paper size of your printer on the other hand.
