Raindance Select Showerpipe 360
Shower systems

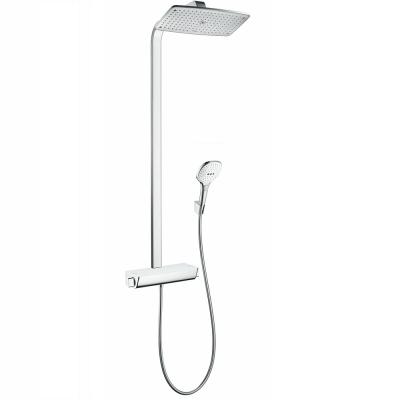

Raindance Select Showerpipe 360

Overhead shower Raindance E 360 Air,
shower head size: 360 x 190 mm,
overhead shower angle adjustable,
spray type: RainAir (rain jet enriched with air),
flow rate RainAir (at 3 bar): 17 l/min,
operating pressure: min. 1.3 bar / max. 10 bar,
fully chrome-plated spray face,
shower arm length: 380 mm,
thermostat Ecostat Select,
with spacious shelf,
Shelf colour: chrome or white,
safety stop at 40°C,
adjustable hot water limitation,
Outlets controlled via volume control/diverter and may not be used simultaneously.
Exposed design allows easy installation, all working parts are outside of the wall.
in case of installation on existing G ½ connections,
adaptor no. 02026000 must be used.
