Raindance Select E 300 2jet
Shower systems

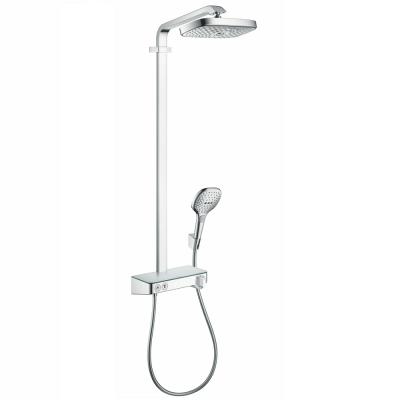

Raindance Select E 300 2jet

overhead shower Raindance Select E 300 2jet,
shower head size: 300 x 160 mm,
overhead shower angle adjustable,
spray type: RainAir (rain jet enriched with air),
Rain Select button to comfortably switch between spray modes,
flow rate RainAir (at 3 bar): 16 l/min,
flow rate Rain (at 3 bar): 16 l/min,
operating pressure: min. 1.5 bar / max. 10 bar,
spray face surface in two variants: chrome or white,
shower arm length: 380 mm,
thermostat ShowerTablet Select 300
with spacious shelf,
Shelf colour: chrome or white,
safety stop at 40°C,
adjustable hot water limitation,
Select button to comfotably switch between spray modes,
exposed design allows easy installation, all working parts are outside of the wall
in case of installation on existing G ½ connections, adaptor no. 02026000 must be used
When installing Select push button products on a pumped system - the pump must have negative head switching.
