Sections & Elevations

Sections, elevations

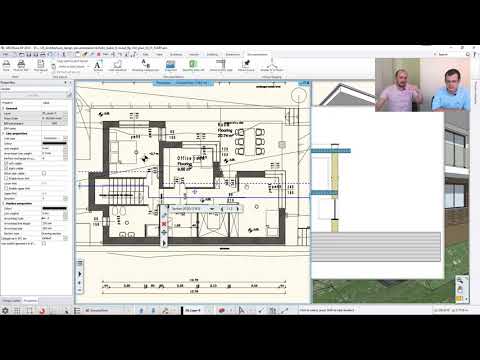

Sections and elevations are drawings that are in living connection with the model itself, which means that they can be updated with one click and they mirror the actual state of the model correctly. In this video you can learn:
- how to create section
- how to resize the width and the depth of the section view
- how to update sections
- how to break their connection to the drawing
- how to handle multiple sections on one drawing
- and how to create exterior elevation view.

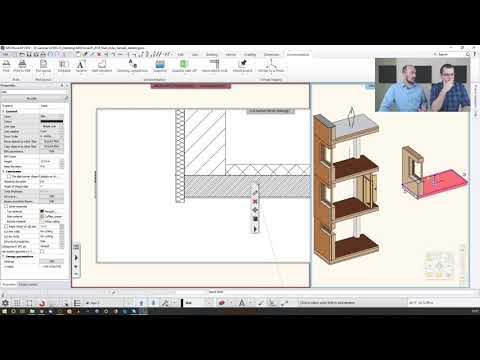

Textures and hatches on sections

In this tutorial video we will show you how to modify the textures and hatches on sections.
