Introducing the 2026 version of ARCHLine.XP, a leading BIM software brand used worldwide.
This year’s release arrives with comprehensive improvements: further enhancing design efficiency, elevating collaboration to a new level, and delivering an even more impressive visualization experience for users.
The enhanced architectural grid makes design simpler and faster, while allowing you to easily customize its appearance to your needs.

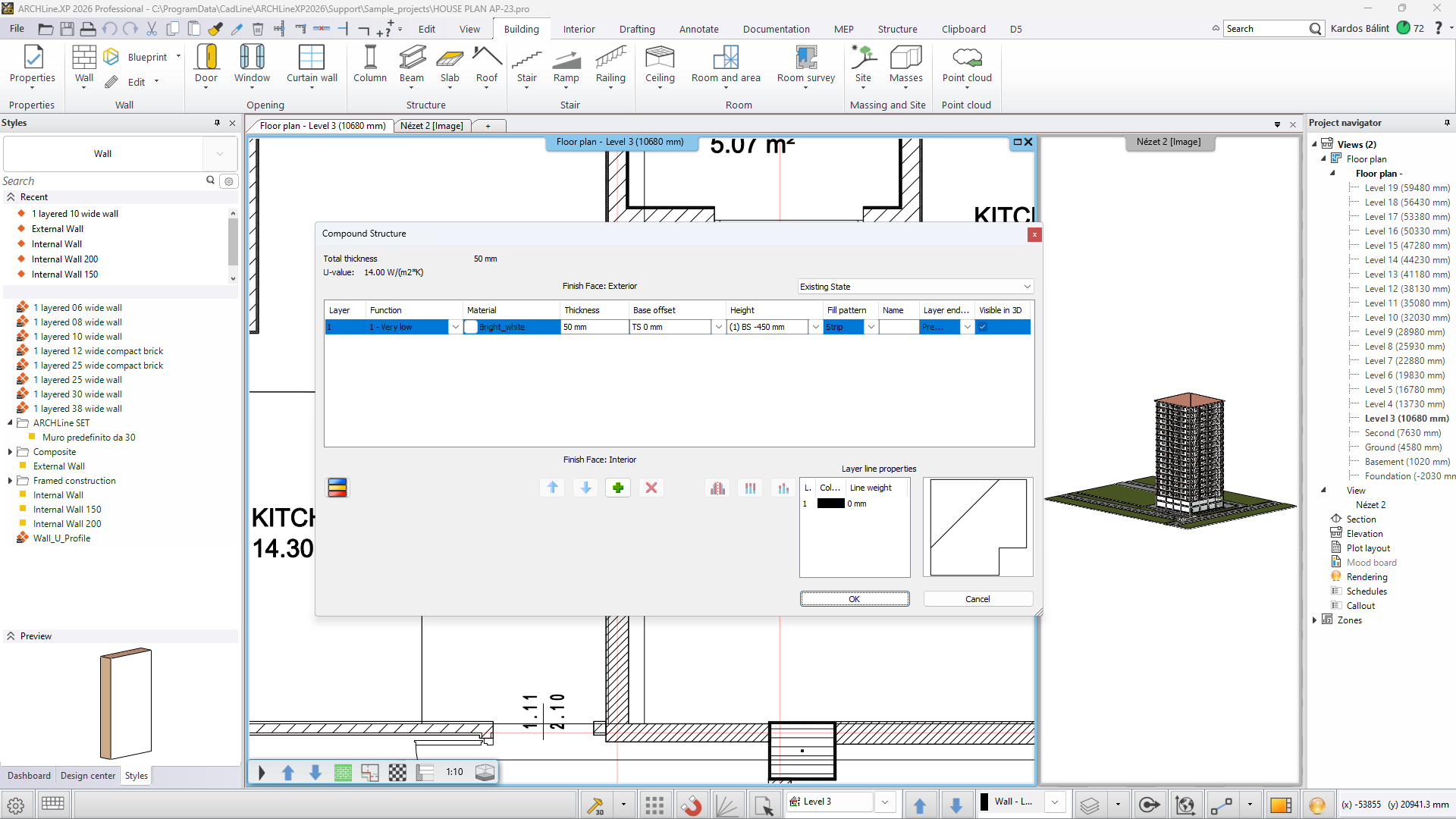

Add a new layer to a wall and define its function, material, thickness, and position!
Flexibly adapt wall structures to your design requirements.
The redesigned interface simplifies rebar editing, making structural detailing faster and more intuitive.

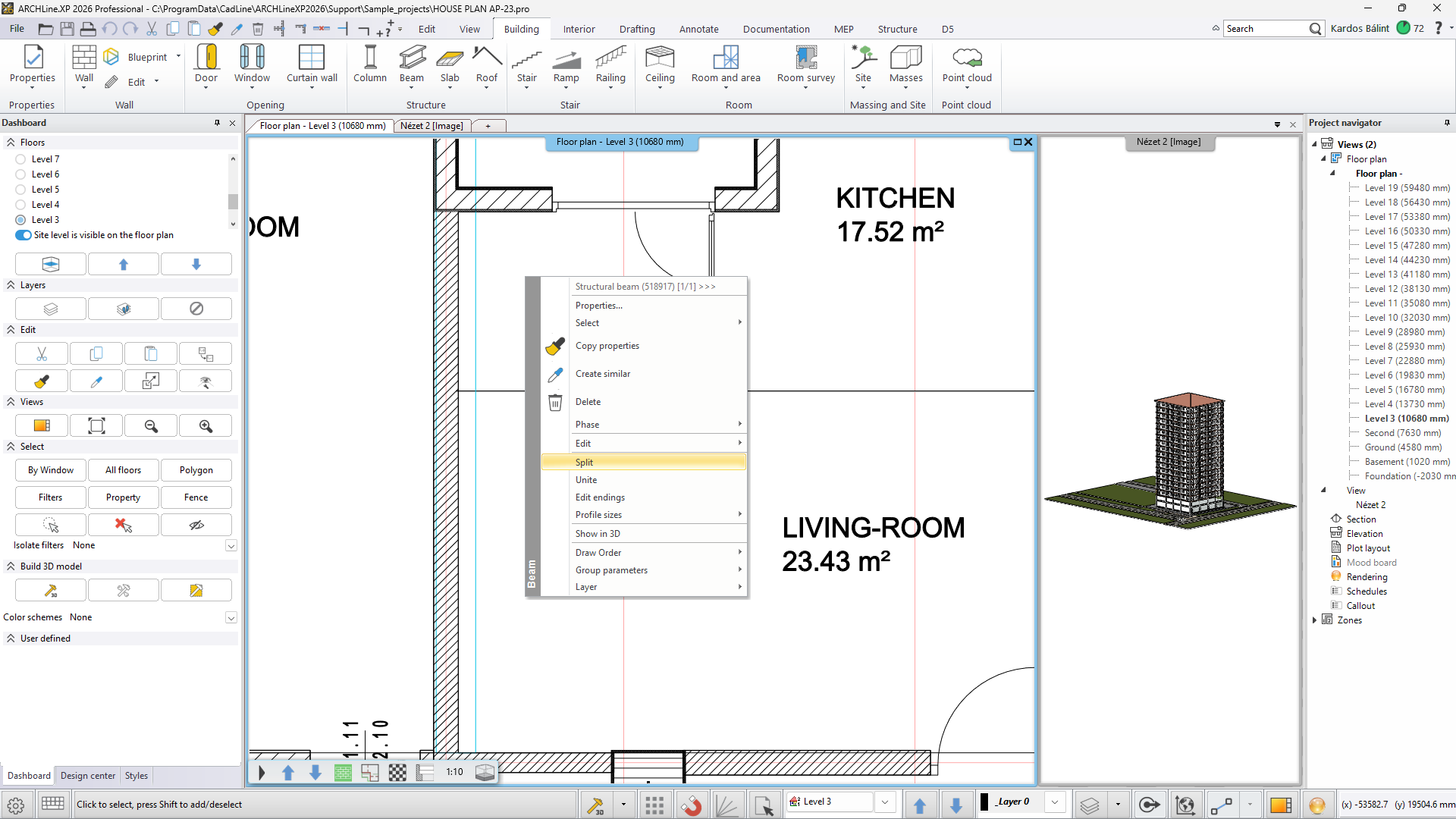

Beam merging and splitting are editing functions that significantly simplify structural modeling and precise design development.
In the new version, when insulation is enabled for columns inserted into walls, the insulation layer appears only on the parts outside the wall layers.
Complete freedom in door plan representation!
Choose a custom contour, opening line, or symbol - tailor the documentation to your own style.
Imported Revit Family elements are automatically organized into variants - ensuring clearer data management and easier type handling.
When using IFC 4 export, the exported file also saves the defined georeference values, meaning the project includes geolocation as a BIM parameter.
Browse projects, upload and download documents directly from ARCHLine.XP!
Work on a single platform - faster and more efficiently.

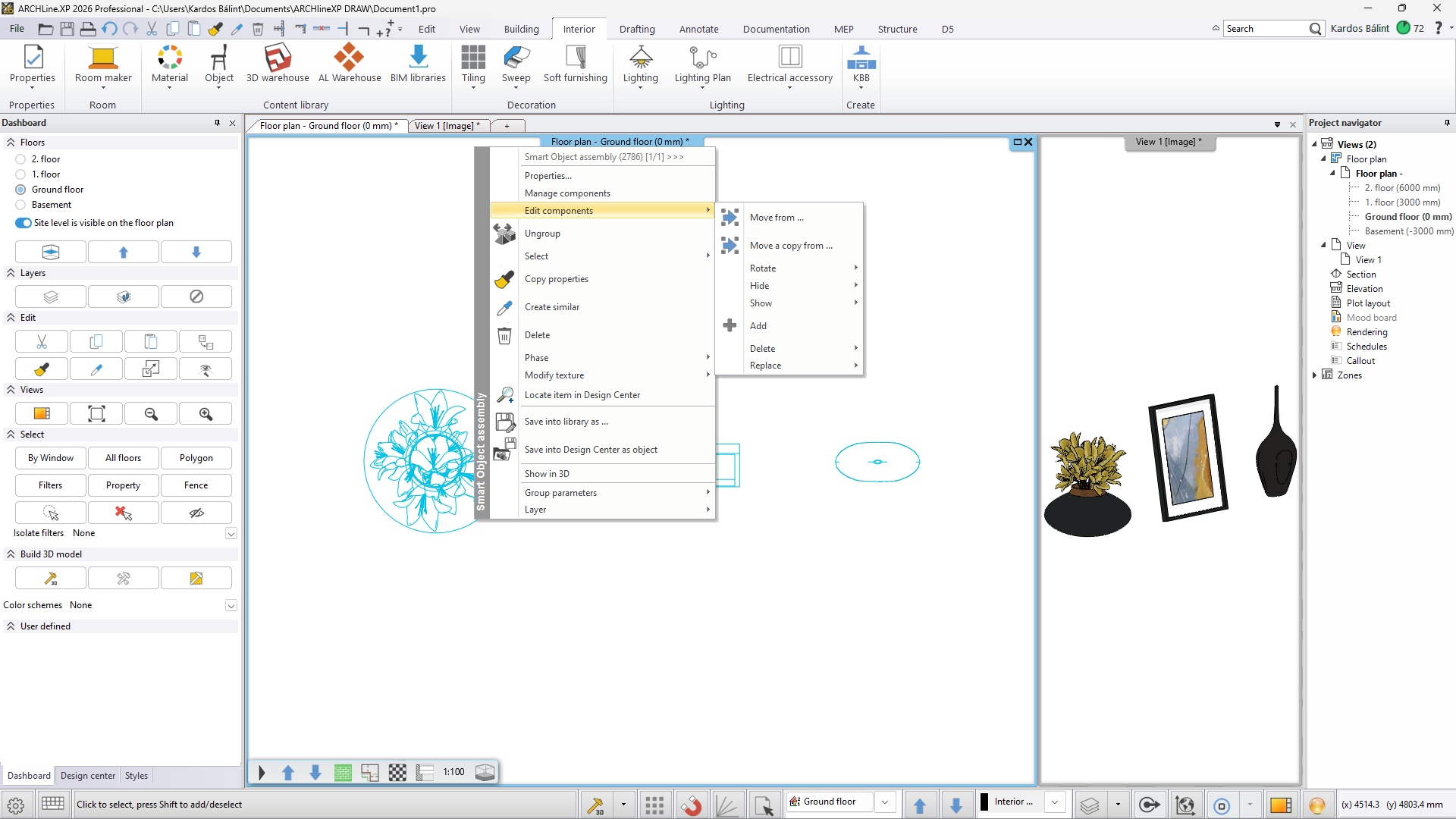

Edit groups easily: add or remove elements, replace them with another group, and update instances in a single step!

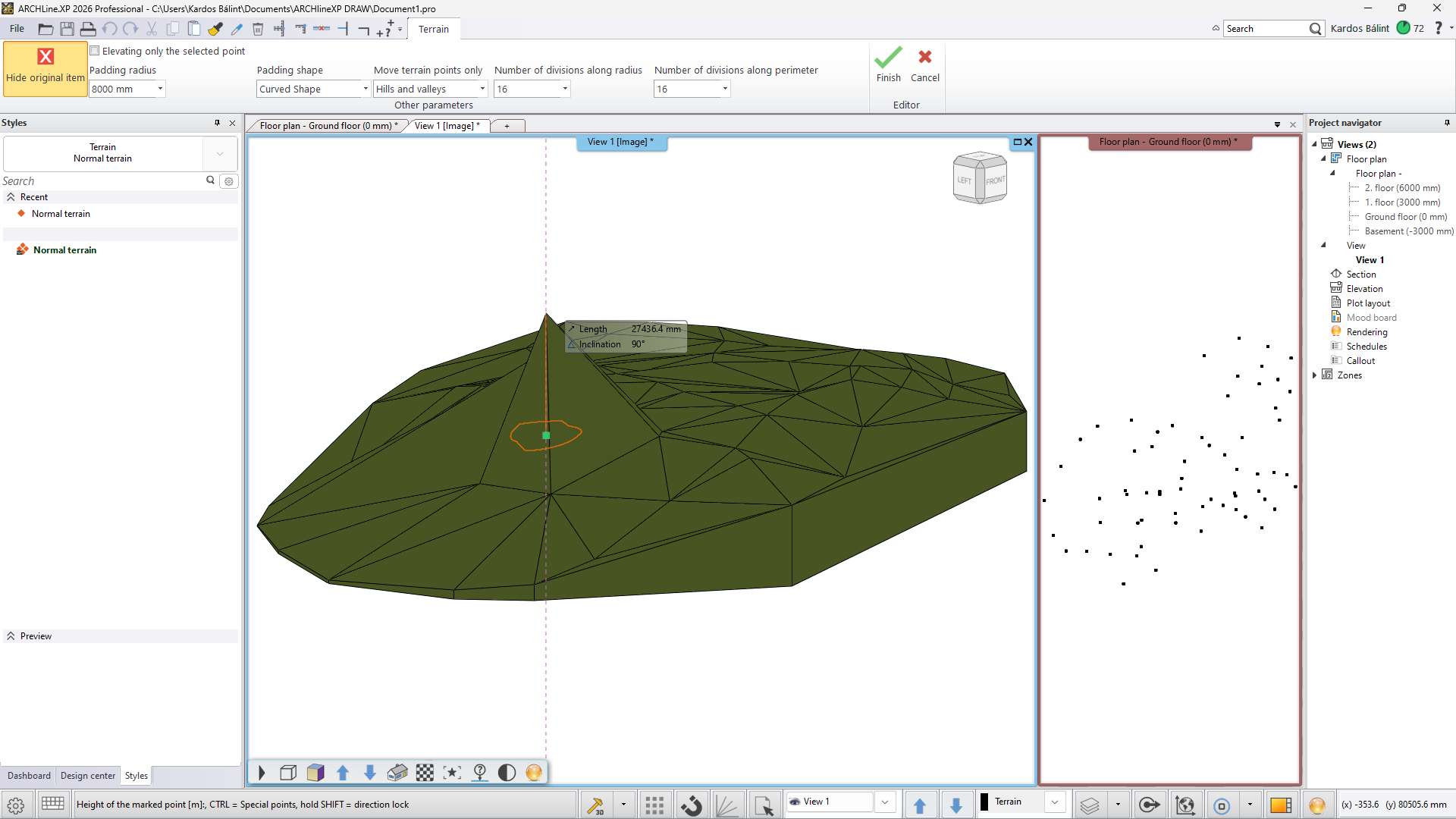

Set the elevation of a terrain point individually or together with its surroundings directly in 3D view!
Shape the terrain model quickly and precisely according to your design.
A versatile tool for fine-tuning brightness, contrast, and colors, applying filters, and transforming images - all directly within the program.
Create unlimited object variants in the library and manage them in one place!
Speed up editing of repetitive elements and test multiple design options in moments.
Discover the new 3D sketch environment for solid and surface elements!
Thanks to the clean interface, creating and modifying shapes is now much easier.
Expanded modeling options with tunnel vaults, cross vaults, cloister vaults, trough vaults, bohemian vaults, and domes, offering greater architectural freedom.

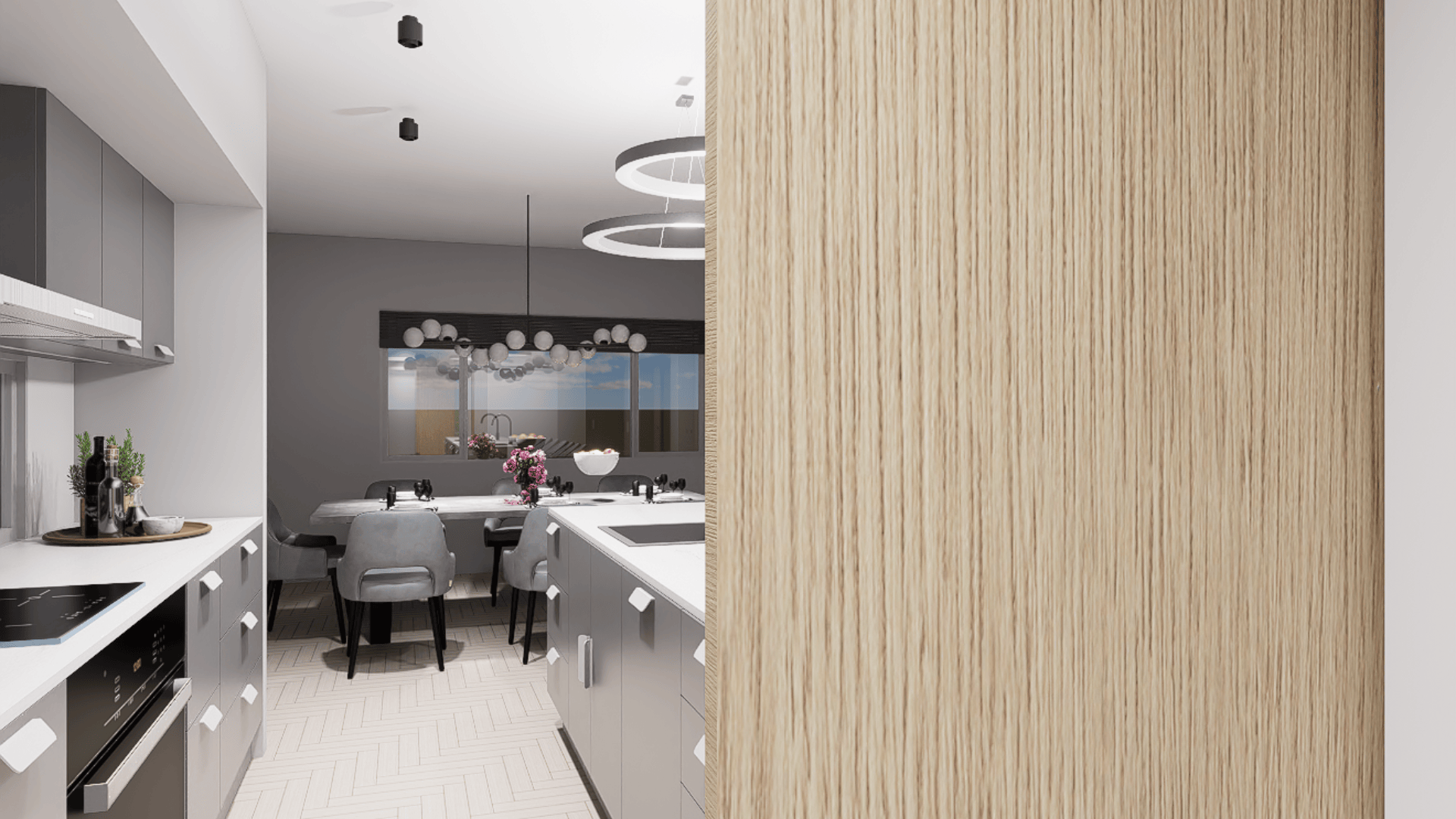

With the Near Clipping feature, elements too close to the camera can be made invisible in the 3D view and during D5 rendering. This allows you to create cleaner, clearer interior visualizations without distracting objects.
The new 2026 D5 Render plugin provides full data connectivity to D5 Render version 3.0.x.
The data link transfers the model, lights, materials, and even camera viewpoints.
D5 Render 3.0.x supports the “Near Clipping” function.
Larger design workspace, cleaner interface, more efficient workflow.
More room for creativity, fewer distractions.
Try it now!
The most frequently used view control commands are available in one collapsible panel, leaving more space for drawing views.
The navigation cube provides fast and intuitive orientation when navigating complex 3D models.

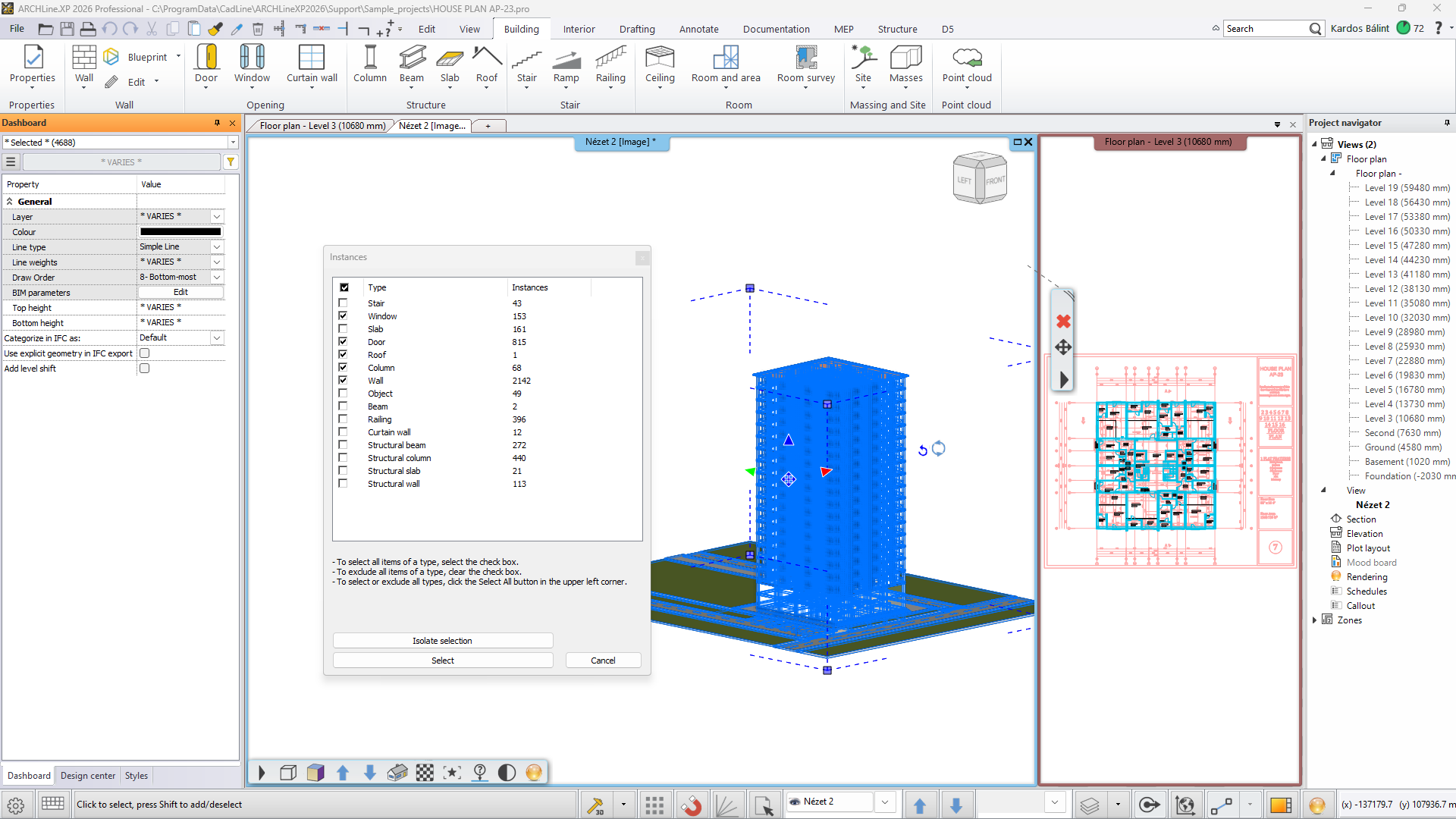

With the Quick selection, you can instantly exclude unwanted element types from selection.
Guide the cursor precisely along the X, Y, and Z axes or parallel to a plane - enabling even more precise 3D modeling.
See the complete editing history of your project in one place!
The system collects the full editing history, and any previous version can be accessed from here.
