Complex modelling tools

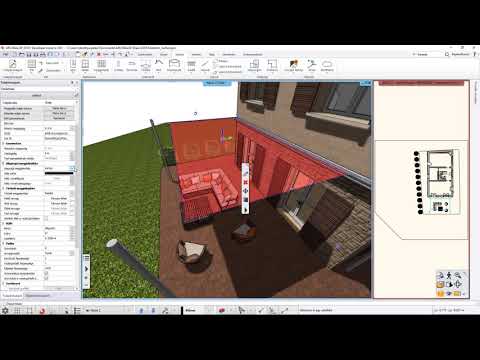

Creating a sUN SAIL SHADE

With ARCHLine.XP's freeform surface tool, you can create custom shapes, blankets, nets, or sun sail shades. In this video, we will create this sun sail shade using the freeform surface tool.

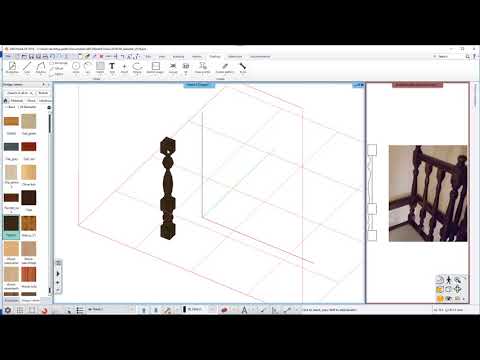

3D baluster

In the following video you can learn how to create a turned baluster in ARCHLine.XP.

3D shape by sweeping a 2D profile along a path

You can sketch the path in multiple workplanes, allowing for a 3D path. Use a sweep to create moldings, pipes, decoration items.
