NEW IN ARCHLINE.XP 2022
Fast and efficient methods help design accuracy such as Slab layers with sloped and variable thickness, Wall layers and phases, fully customizable Sliding doors, new aligning features in 2D and 3D views.
PBR materials open a new world to realism. PBR means Physically Based Rendering and allows to simulate existing materials as realistic as possible under all lighting conditions.
Rendering of a coffee shop interior with PBR materials and warm color temperature in lights - You may notice the variance of the rusty metal decorative wall which is only a flat surface having a PBR material with detailed texture channels for roughness and reflection.
It is possible to create custom sliding doors using the Door Wizard command. With the new options, you can also make sliding doors running in front of and in the wall.

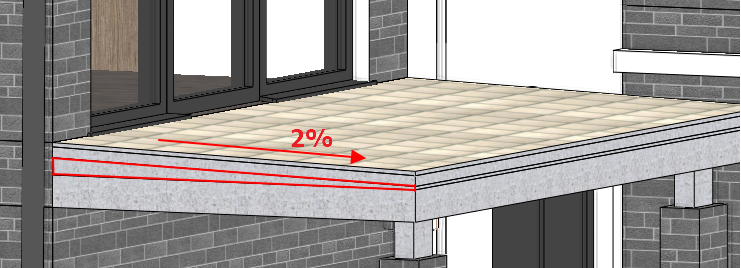

ARCHLine.XP offers a new way to specify the slope slope, e.g. on a sidewalk or balcony where a natural slope must also be created with a layer of cement for drainage.

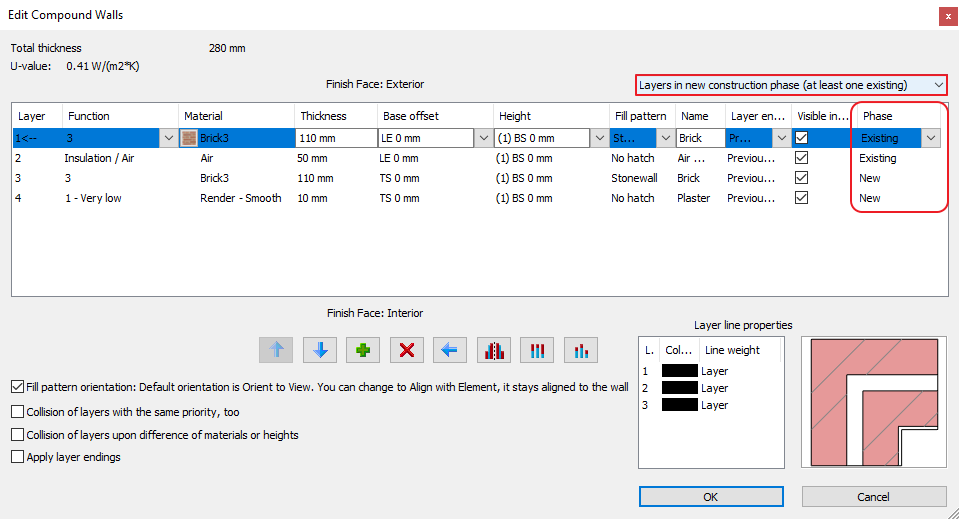

You can fully customize the wall's appearance applying different phases to different wall layers.
As a result of the development of the Import RVT function, the most important architectural elements keep their type and properties. The wall, slab, column, beam also appear in ARCHLine.XP as elements of the same type, with the same properties.

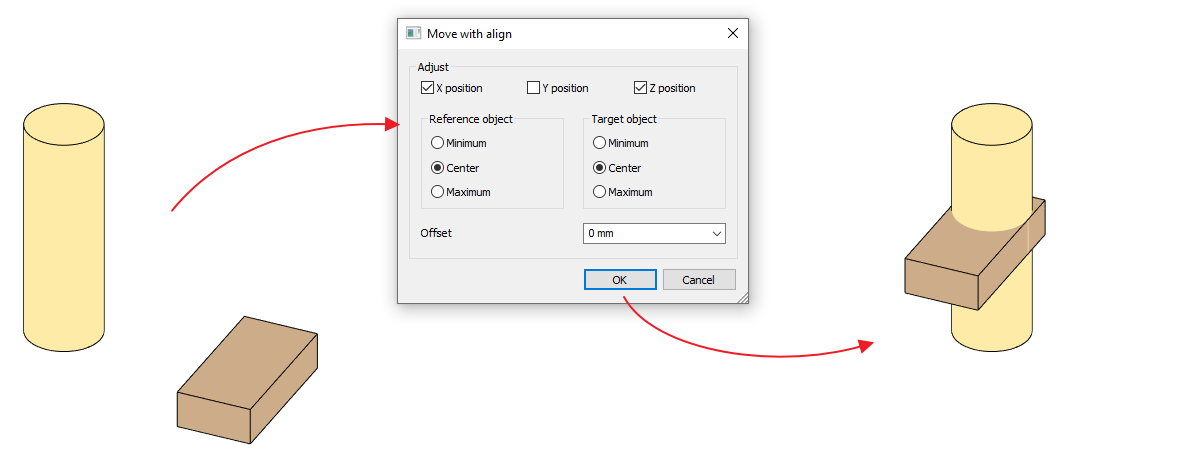

ARCHLine.XP supports multiple copying of selected items in several ways such as along one axis (lock to X,Y or Z) and along a path.
New options in Plot layout - control multiple buildings with floors and wall fill pattern.
Special material tags help you quickly identify the type of materials used for wall, slab and roof layers.
Location: Documentation - Quantity Take-Off - Used Materials
After you place the tag, you can update its content by selecting the tag with right click and clicking on Update Tag command.
