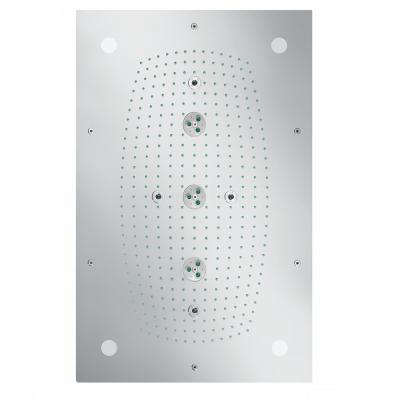

Raindance Rainmaker 680mm x 460mm with lighting
Overhead shower
Raindance Rainmaker 680mm x 460mm with lighting

shower head size: 680 x 460 mm
spray type: RainAir (rain jet enriched with air), WhirlAir (massage spray), RainAir XXL
flow rate RainAir (at 3 bar): 20 l/min
flow rate RainAir XXL (at 3 bar): 24 l/min
flow rate WhirlAir (at 3 bar): 22 l/min
operating pressure: min. 3 bar / max. 10 bar
the 3 spray zones must be controlled via 3 valves or a diverter valve with 3 outlets
fully chrome-plated spray face
material spray face: metal
installation type: installation type:flush with the ceiling on basic body
with integrated lighting
power supply: 230V / 50Hz
illuminant: 4 x 20W low voltage halogen reflector lamps incl. 80VA power supply unit
