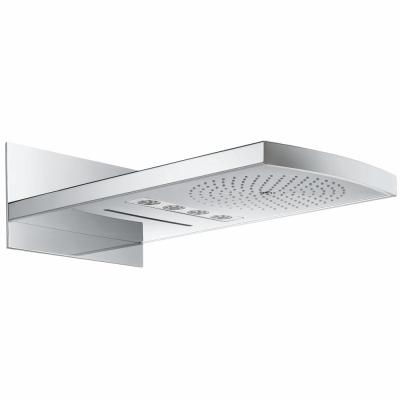

Raindance Rainfall overhead shower
Overhead shower
Raindance Rainfall overhead shower

shower head size: 240 mm
spray type: RainAir (rain jet enriched with air), WhirlAir (massage spray), wide flood jet
flow rate RainAir (at 3 bar): 18 l/min
flow rate WhirlAir (at 3 bar): 16 l/min
flow rate flood jet (at 3 bar): 28 l/min
operating pressure: min. 2 bar / max. 6 bar
the 3 spray zones must be controlled via 3 valves or a diverter valve with 3 outlets
fully chrome-plated spray face
material spray face: metal
installation type: wall mounted - for installation on iBox
